Device Integration: Windows AD and MSSQL

Overview

This article explains how to enable and forward Active Directory (AD) and Microsoft SQL Server (MSSQL) audit logs from a Windows server to ADR CCE using NxLog. Once configured, ADR ingests, normalises, and analyses these logs for real-time detection of user activity, failed logins, privilege changes, and database anomalies.

Prerequisites

• Admin access to the Windows server hosting AD and MSSQL.

• Admin access to Microsoft SQL Server Management Studio (SSMS).

• Outbound connectivity from Windows server → ADR CCE on:

  • UDP 514 (MSSQL logs)

  • UDP 5154 (AD audit logs)

• Installed NxLog Community Edition (download link).

Enabling Audit Logs on Base OS (This needs to be done for all Windows servers)

This configuration will need you to enable audit logs of Base OS (to be done on all Windows servers)

1. Log in to the machine as Admin.

2. Follow the instructions as given in the link:

https://support.ariacybersecurity.com/support/solutions/articles/70000683536-enabling-windows-security-events-using-audit-policy

Enabling Audit Logs in MSSQL Server

Enable Login Auditing

1. Open SSMS with admin credentials.

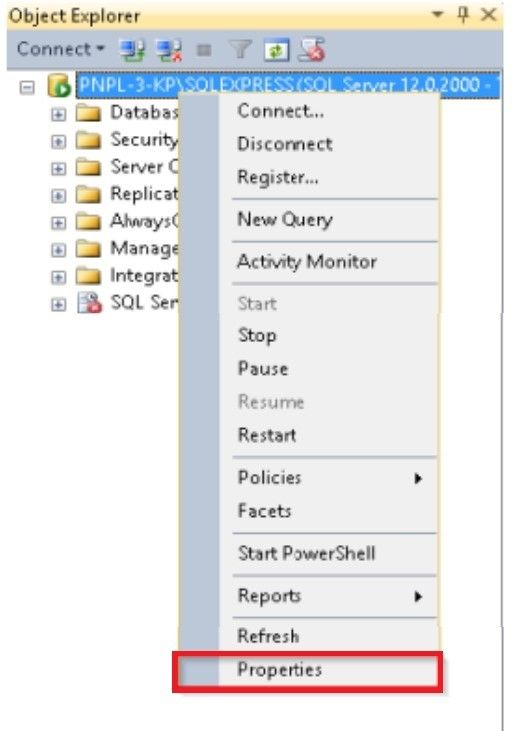

2. In Object Explorer, right-click the database server → Properties.

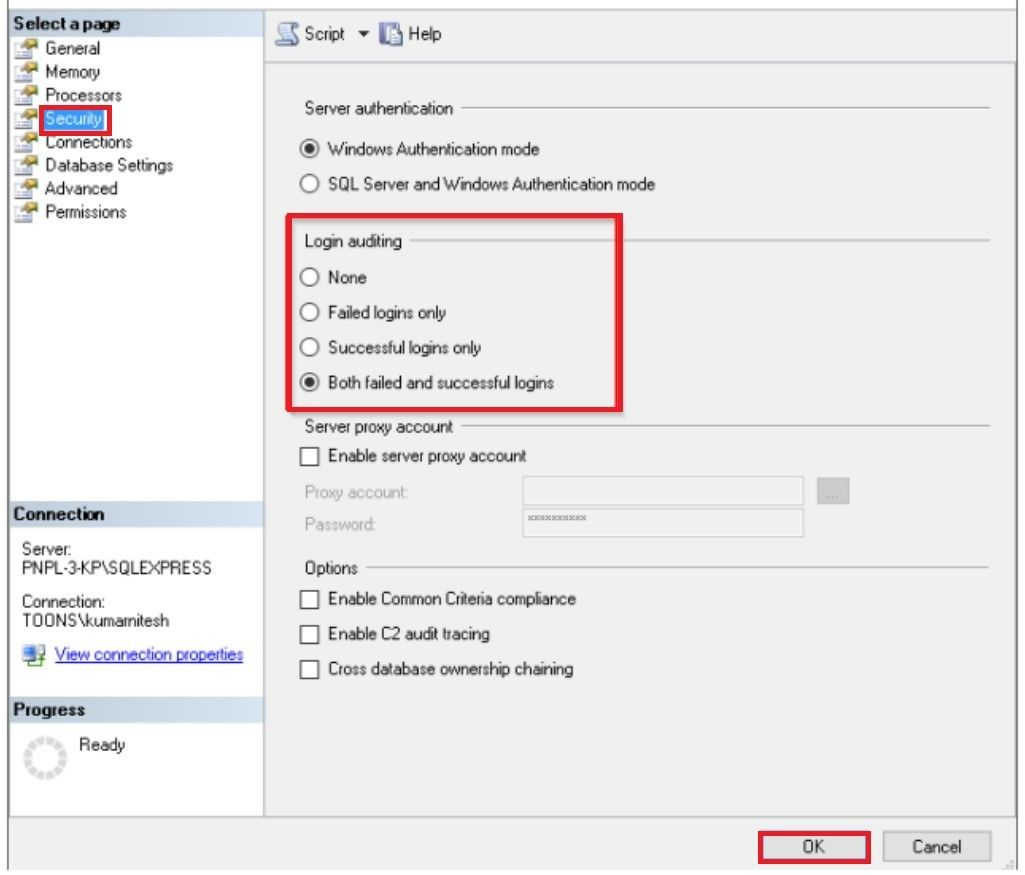

3. Go to Security → Login Auditing.

4. Select Both failed and successful logins → OK.

Create and Enable Server Auditing

1. In SSMS Object Explorer, expand Security.

2. You’ll see Audits and Server Audit Specifications.

Create a New Audit

1. Right-click Audits → New Audit…

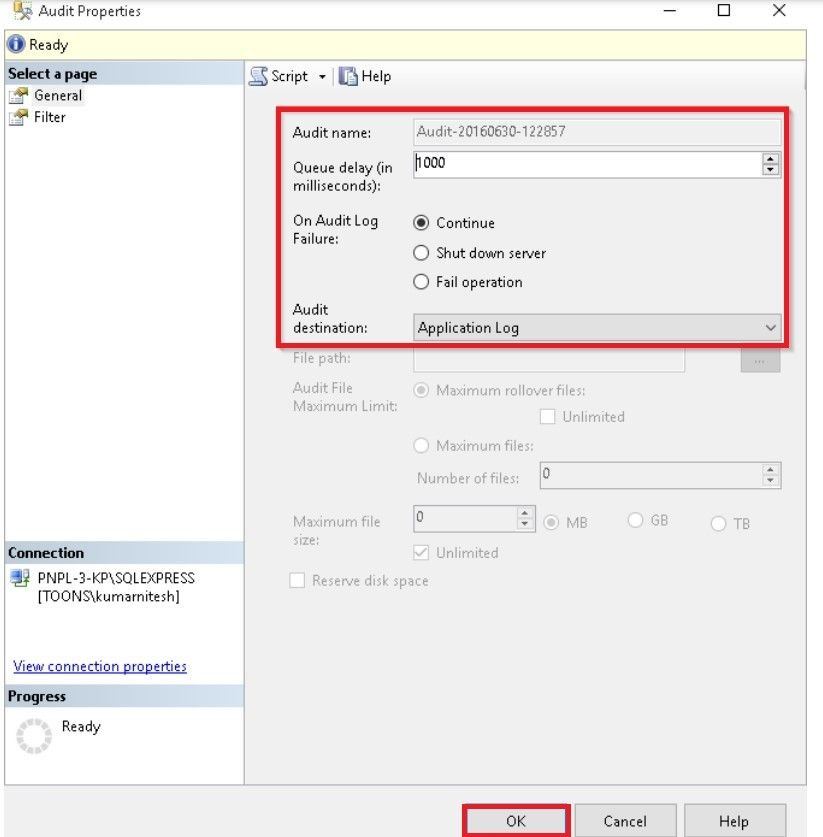

2. In Audit Properties:

   • Name the audit.

   • Set Audit Destination = Application Log.

3. Click OK.

Create a Server Audit Specification

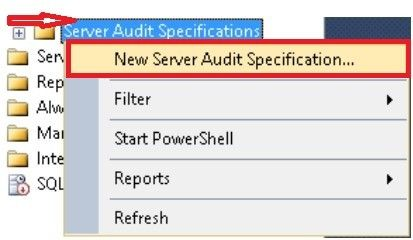

1. Right-click Server Audit Specifications → New Server Audit Specification…

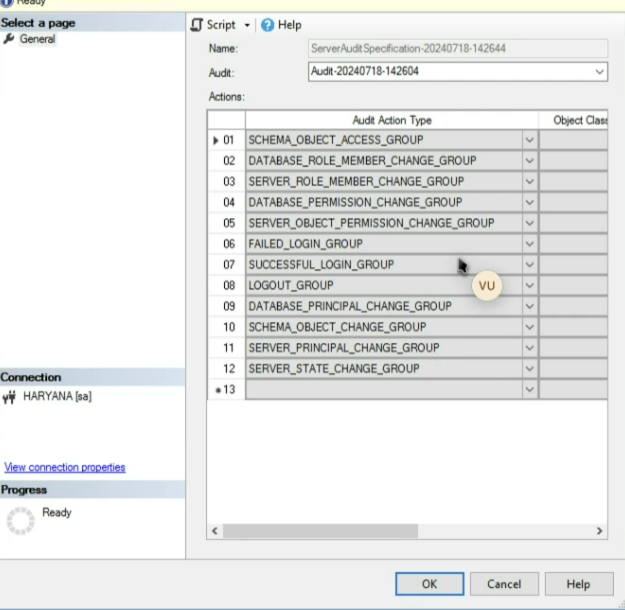

2. In the Server Audit Specification Properties:

   • Name the specification.

   • Choose the earlier created Audit from the drop-down.

   • Select recommended Audit Action Types such as:

     • FAILED_LOGIN_GROUP → Failed logins

     • SUCCESSFUL_LOGIN_GROUP → Successful logins

     • LOGOUT_GROUP → Logouts

     • SERVER_OBJECT_PERMISSION_CHANGE_GROUP → Permission changes

     • DATABASE_ROLE_MEMBER_CHANGE_GROUP → Role membership changes

     • SCHEMA_OBJECT_ACCESS_GROUP → Schema object access

3. Click OK.

4. Enable:

   • Right-click the Audit → Enable

   • Right-click the Server Audit Specification → Enable Server Audit Specification

Verify MSSQL Audit Logs

1. In SSMS, click View Audit Logs.

2. Confirm audit entries (successful & failed logins, role changes, etc.) are recorded.

NxLog Configuration for AD and MSSQL

File Location

C:\Program Files\nxlog\conf\nxlog.conf

Sample Configuration

Replace file content with the following (update <CCE_IP> with your ADR CCE IP):

## This is a sample configuration file. See the nxlog reference manual about the
## configuration options. It should be installed locally and is also available
## online at http://nxlog.org/docs/
## Please set the ROOT to the folder your nxlog was installed into,
## otherwise it will not start.

define ROOT C:\Program Files\nxlog
#define ROOT C:\Program Files (x86)\nxlog
#define ROOT C:\Program Files (x86)\nxlog

Moduledir %ROOT%\modules
CacheDir %ROOT%\data
Pidfile %ROOT%\data\nxlog.pid
SpoolDir %ROOT%\data
LogFile %ROOT%\data\nxlog.log

<Extension _json>
  Module xm_json
</Extension>

<Extension mssql_csv>
    Module xm_csv
    Fields $Hostname, $SourceName, $Action_ID, $Result, $DataBase, $SV_Instance, $User, $Message
    FieldTypes string, string, string, string, string, string, string, string
    Delimiter ;
</Extension>

define aisiem \
2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 17, 18, 19, 20, 21, 41, 104, 500, \
520, 600, 1001, 1006, 1007, 1008, 1015, 1033, 1034, 1074, 1102, 1116, 1117, 1118, \
1119, 1125, 2003, 2100, 4103, 4104, 4608, 4609, 4616, 4618, 4624, 4625, 4634, 4647, \
4648, 4649, 4656, 4657, 4659, 4660, 4661, 4662, 4663, 4670, 4672, 4673, 4674, 4685, \
4688, 4690, 4697, 4698, 4699, 4700, 4702, 4703, 4704, 4705, 4707, 4717, 4718, 4719, \
4720, 4722, 4723, 4724, 4725, 4726, 4727, 4728, 4729, 4730, 4731, 4732, 4733, 4734, \
4735, 4737, 4738, 4739, 4740, 4741, 4742, 4743, 4744, 4745, 4746, 4747, 4748, 4749, \
4750, 4751, 4752, 4753, 4754, 4755, 4756, 4757, 4758, 4759, 4760, 4761, 4762, 4763, \
4764, 4765, 4767, 4769, 4771, 4772, 4776, 4777, 4778, 4779, 4780, 4781, 4782, 4783, \
4784, 4785, 4786, 4787, 4788, 4789, 4790, 4791, 4794, 4797, 4798, 4799, 4800, 4801, \
4802, 4803, 4946, 4947, 4950, 4954, 4964, 4985, 5001, 5004, 5007, 5010, 5012, 5025, \
5031, 5136, 5137, 5140, 5141, 5142, 5143, 5144, 5145, 5152, 5153, 5155, 5157, 5376, \
5377, 5447, 5712, 6005, 6006, 6008, 7034, 7035, 7036, 7040, 7045, 8003, 8004, 8007, \
11707, 11708, 23010, 23050, 23090, 34112, 34113, 64004 \

<Input in>
      Module im_msvistalog
      Query <QueryList>\
                  <Query Id="0">\
                        <Select Path="Security">* </Select>\
                        <Select Path="Setup">* </Select>\
                        <Select Path="System">* </Select>\
                  </Query>\
            </QueryList>
            <Exec>
                  if ($EventID NOT IN (%aisiem%)) drop();
            </Exec>
</Input>

<Output out>
  Module om_udp
  Host 10.0.0.1
  Port 5154
  Exec to_json();
</Output>

<Input in_mssql>
   Module im_msvistalog
      Query <QueryList>\
<Query Id="0">\
<Select Path="Application">* </Select>\
</Query>\
</QueryList>
    SavePos FALSE
    ReadFromLast TRUE
    Exec $Message = $raw_event;
    # Finding some values:
    Exec if $raw_event =~ /action_id:(\S+)/ $Action_ID = $1;
    Exec if $raw_event =~ /database_name:(\S+)/ $DataBase = $1;
    Exec if $raw_event =~ /server_instance_name:(\S+)/ $SV_Instance = $1;
    Exec if $raw_event =~ /session_server_principal_name:(\S+)/ $User = $1;
    Exec if $raw_event =~ /AUDIT_SUCCESS/\
              {\
                    $Result = 'Success';\
              }\
              else\
                    $Result = 'Failure';
    # Replace white spaces
    Exec $Message = replace($Message, "\t", " "); $Message = replace($Message, "\n", " "); $Message = replace($Message, "\r", " ");
</Input>

<Output out_mssql>
    Module om_udp
    Host 10.0.0.1
    Port 514
    # Ensure we send in the proper format:
    Exec $Hostname = hostname_fqdn();
    Exec mssql_csv->to_csv(); $raw_event = $Hostname + ' mssql_logs: ' + $raw_event;
</Output>

<Route mssql>
    Path in_mssql => out_mssql
</Route>

<Route 1>
  Path in => out
</Route>

Apply and Restart NxLog

1. Save the updated nxlog.conf.

2. Restart the NxLog service:

   net stop nxlog

   net start nxlog




Verification (MSSP Only)

On ADR CCE

Execute the following command:

For Windows AD

sudo tcpdump -i any port 5154 and host <IP Address> -s0 -AAA

For Windows DNS

sudo tcpdump -i any port 514 and host <IP Address> -s0 -AAA

Confirm logs from the server are being received.

On ADR GUI

1. Log in to aiSIEM.

2. Navigate: System → Logs and Flows Collection Status.

3. Verify the Windows server’s IP is listed, and both AD and DNS logs are visible.
