Overview

This guide provides detailed steps to configure a WatchGuard Firewall for forwarding both Syslog logs and NetFlow traffic data to ADR using the CCE (Collection and Control Engine). The configuration allows the firewall to send:

• Syslog logs (firewall logs and security events) forwarded on UDP port 514.
• NetFlow/IPFIX traffic metadata forwarded on UDP port 9995.

Once properly configured, ADR ingests and correlates these logs and flow data to provide comprehensive visibility and proactive threat detection.

Prerequisites

• Admin access to the WatchGuard Firewall Web UI or CLI.
• Admin access to ADR dashboard
• Ensure firewall connectivity to the ADR CCE on the following ports and IP address:
  • UDP port 514 for Syslog.
  • UDP port 9995 for NetFlow.
  • The IP address of the CCE server.

Syslog Configuration (WatchGuard)

Step 1: Enable Syslog Logging

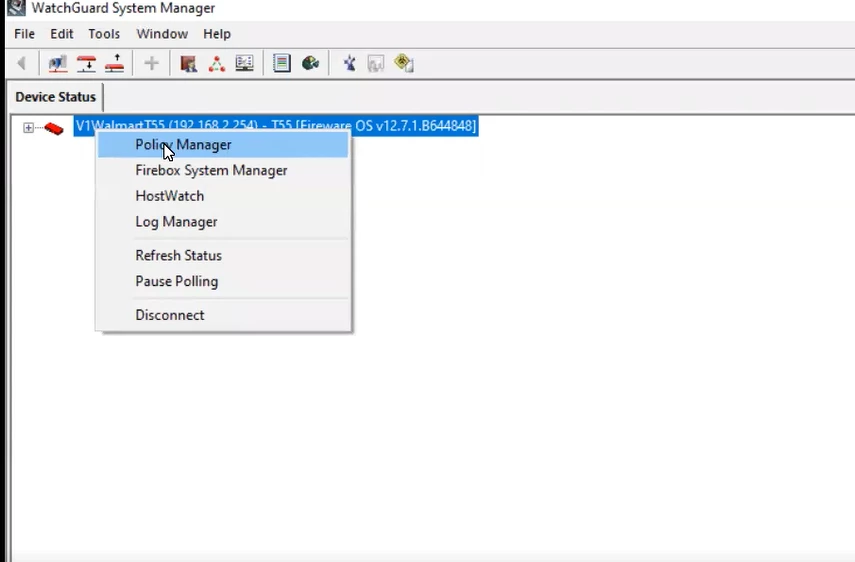

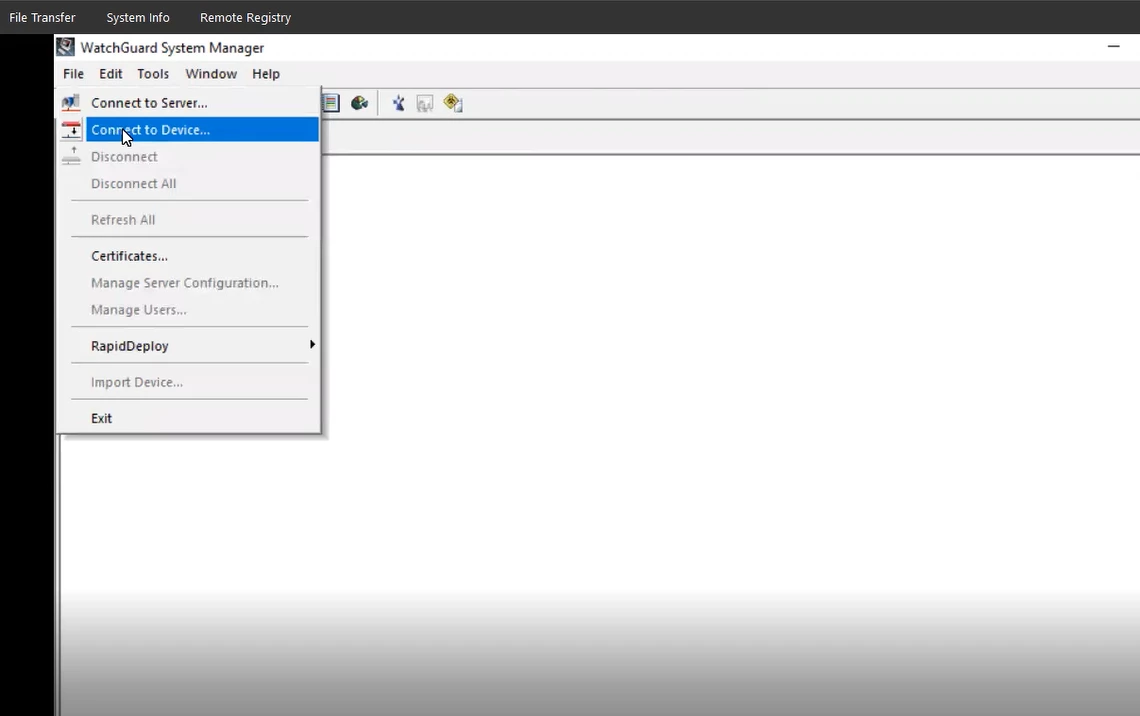

1. Log in to the WatchGuard Web UI.

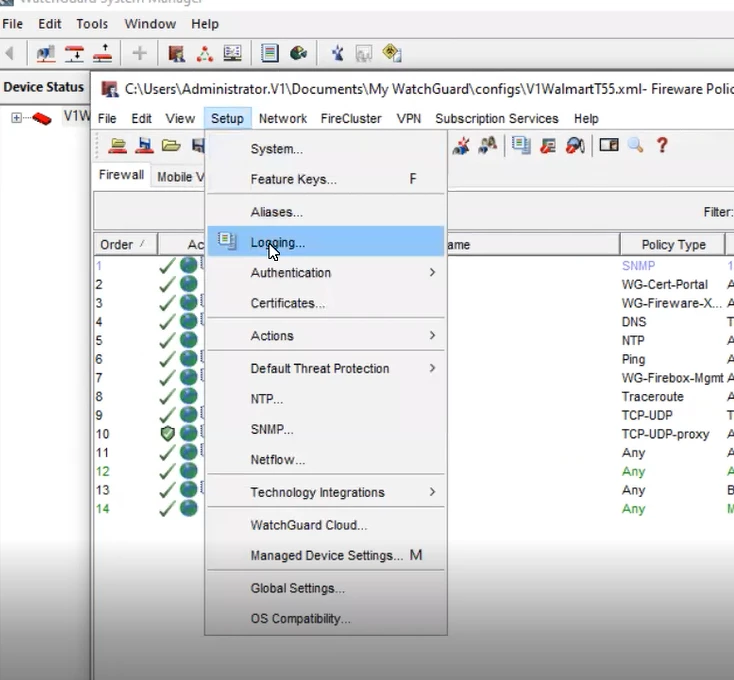

2. Navigate to: System → Logging → Syslog Server.

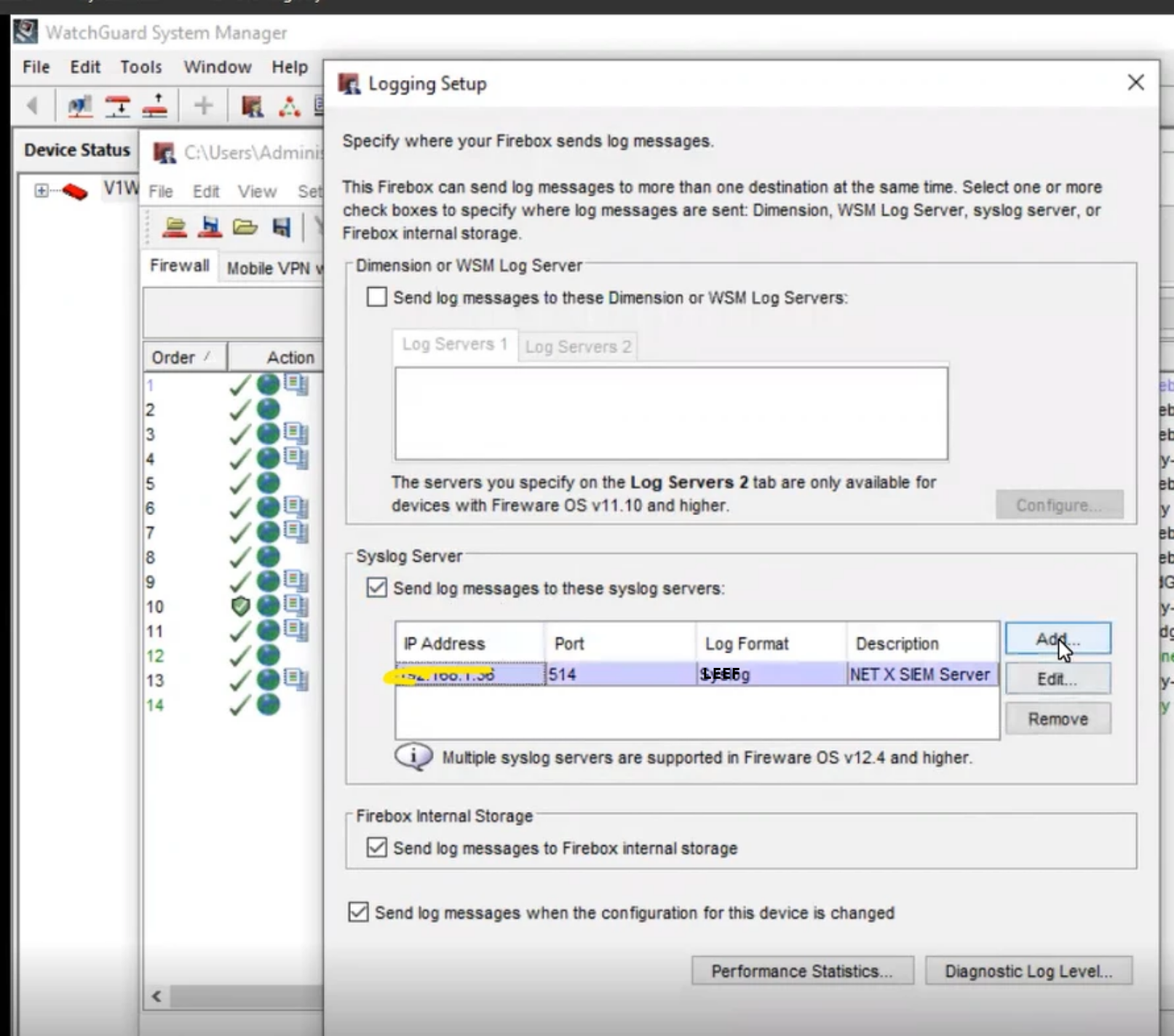

3. Enable Send log messages to syslog server.


Step 2: Configure Syslog Server

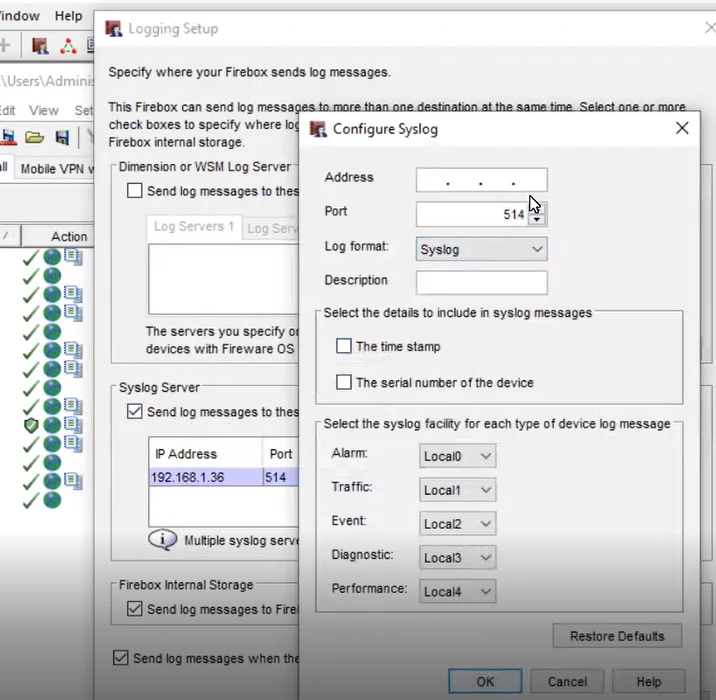

1. Add a new Syslog server:
   • Server IP = <CCE_IP>
   • Port = 514
   • Protocol = UDP
   • Log Format: LEEF
   • Facility = Local7 (recommended)
   • Severity = Warning (or lower to capture more logs).
2. Select the log categories to forward:
   • Traffic logs
   • Security events (IPS, AV, Threat Detection, VPN)
   • System events
3. Apply the settings.



NetFlow Configuration (WatchGuard)

Step 1: Enable NetFlow

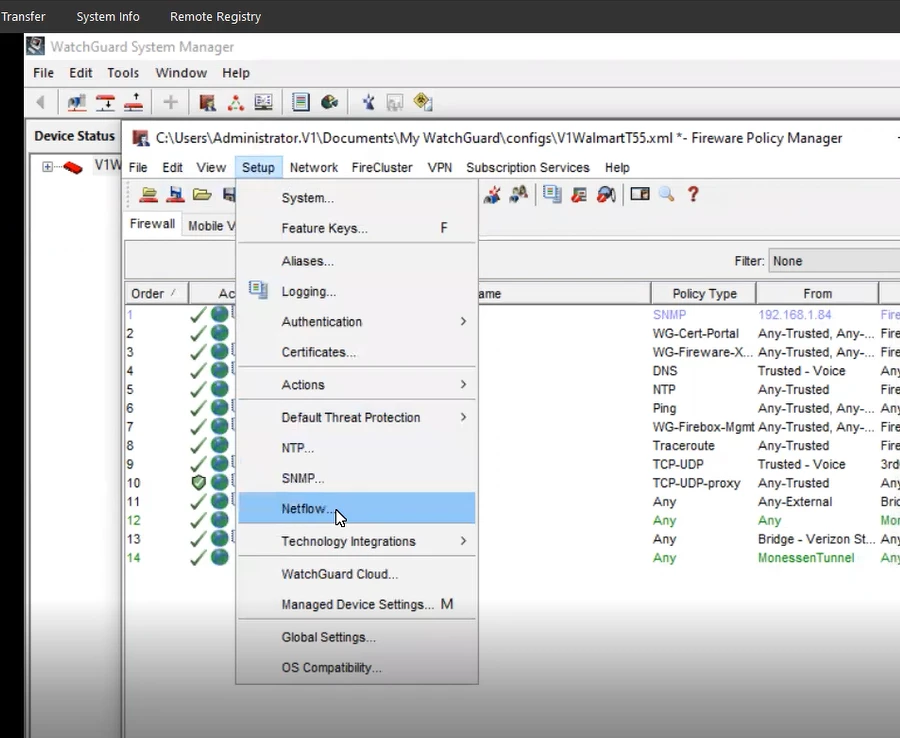

1. In the WatchGuard Web UI, go to: System → NetFlow Settings.
2. Enable NetFlow Export.


Step 2: Configure NetFlow Collector

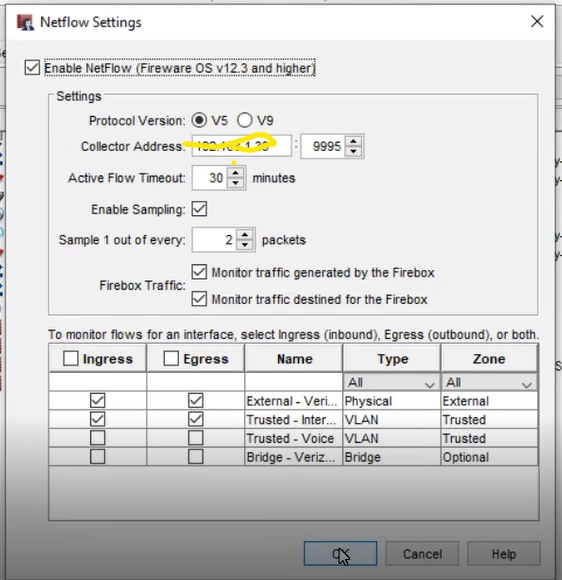

1. Add a NetFlow collector:
   • Collector IP = <CCE_IP>
   • Port = 9995
   • Version = V5
   • Active Timeout = 1 min
   • For each interface to be monitored → Enable NetFlow export.
2. Save and apply.


Verification

Login to the ADR Dashboard

Navigate: System → Logs and Flows Collection Status.

Confirm that WatchGuard Firewall IP is listed under Source Device IP for both logs and flows.
