Device Integration: CrowdStrike EDR

Modified on Tue, 14 Apr at 9:43 PM

TABLE OF CONTENTS

Overview
Prerequisites
Integration Process
- Generate API Credentials in CrowdStrike
- Configure Integration in ADR
Verification and Testing
Troubleshooting
Best Practices
Support Resources

Overview

This guide provides step-by-step instructions for configuring log forwarding from CrowdStrike Falcon EDR (Endpoint Detection and Response) to the ADR Control and Collection Engine (CCE) Server. This integration enables centralised security event monitoring and analysis within the ADR platform.

CrowdStrike is a cloud-based endpoint protection platform that provides advanced threat detection and response capabilities. This integration allows ADR to collect and analyse security logs from CrowdStrike through API connectivity, enabling comprehensive threat monitoring and incident response across your security infrastructure.

The integration is configured through the ADR UI using API credentials generated from the CrowdStrike console, allowing seamless log ingestion and real-time monitoring.

Prerequisites

Before beginning the configuration process, ensure you have:

CrowdStrike Falcon Console Access: Administrative privileges to configure log streaming
ADR CCE Server: Running and accessible on your network
ADR GUI Console: Administrative access to the ADR GUI Console
Network Connectivity: Proper firewall rules allowing communication between CrowdStrike and ADR CCE, Firewall configuration allowing outbound HTTPS connections on port 443
API Credentials: CrowdStrike API client ID and secret (if using API-based forwarding)
Ensure the following domains are whitelisted in your firewall configuration based on your CrowdStrike hosting region:
Firehose Endpoints (for streaming data)
firehose.crowdstrike.com
firehose.us-2.crowdstrike.com
firehose.laggar.gcw.crowdstrike.com
firehose.eu-1.crowdstrike.com
API Endpoints (for authentication and data requests)
- api.crowdstrike.com (required for authorisation)
- api.us-2.crowdstrike.com
- api.laggar.gcw.crowdstrike.com
- api.eu-1.crowdstrike.com
Port Requirements
- Port 443 (HTTPS) - Required for all API communications

Integration Process

Part 1: Generate API Credentials in CrowdStrike

1: Access CrowdStrike Console

Log in to your CrowdStrike console with administrative privileges
Navigate to the API client management section

2: Create New API Client

Click Add new API client
Provide the following information:
- Client Name: Enter a descriptive name (e.g., "ADR Integration")
- Description: Add a relevant description for the integration purpose

3: Configure Required API Scopes

For the current CrowdStrike → ADR integration, only one permission is required:

Scope	Read	Write	Purpose
Alerts	✅ Yes	❌ No	Read-only access to fetch security alerts from CrowdStrike

4: Generate and Save Credentials

After configuring scopes, save the API client configuration
Immediately copy and save the following generated credentials:
- Client ID
- Client Secret (this will not be visible again)
- Base URL (your CrowdStrike cloud region endpoint)

⚠️ Important: Save these credentials in a secure location immediately, as the Client Secret cannot be retrieved again.

Configure Integration in ADR

1: Access API Connect Interface

Log in to your ADR platform
Navigate to the tenant where you want to add CrowdStrike integration

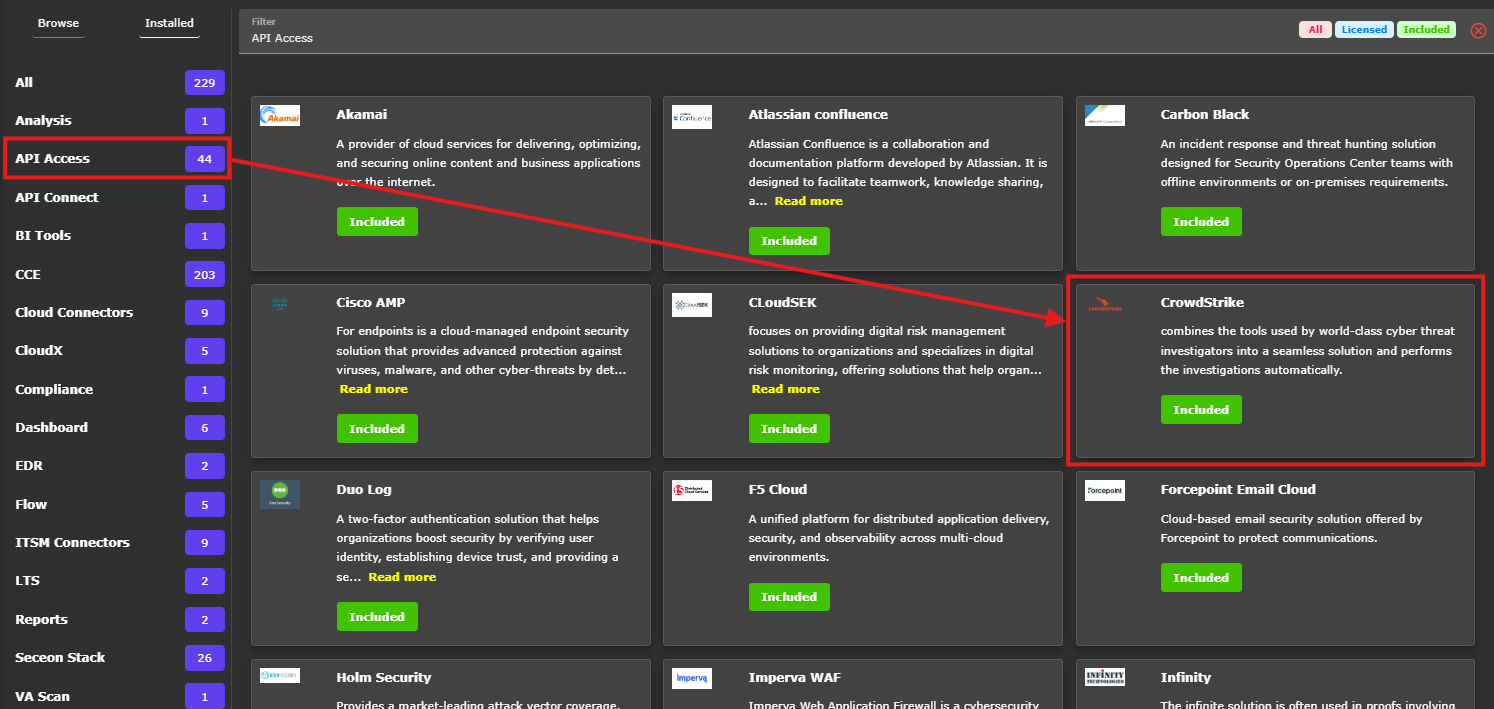

Follow the menu path: Administration > Add-On Store > CrowdStrike

2: Initialize CrowdStrike Integration

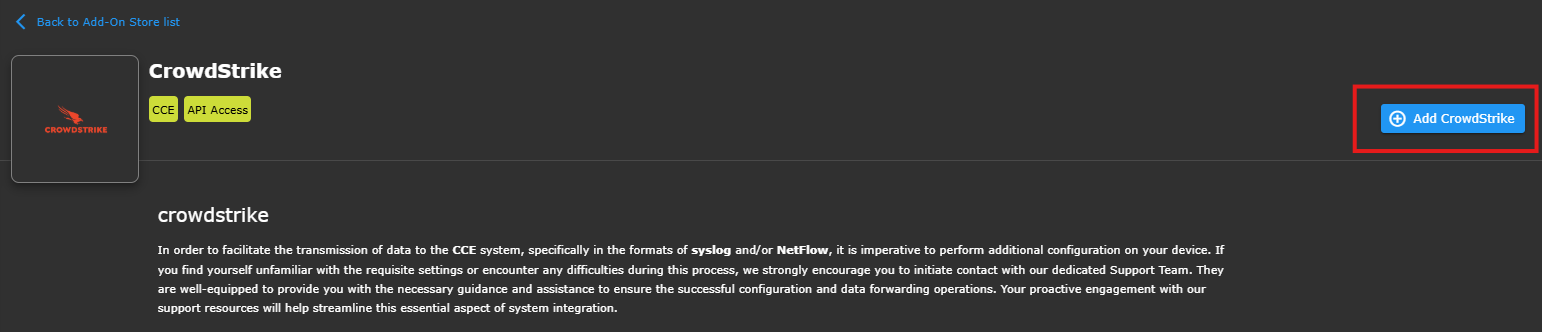

Click the Add CrowdStrike button

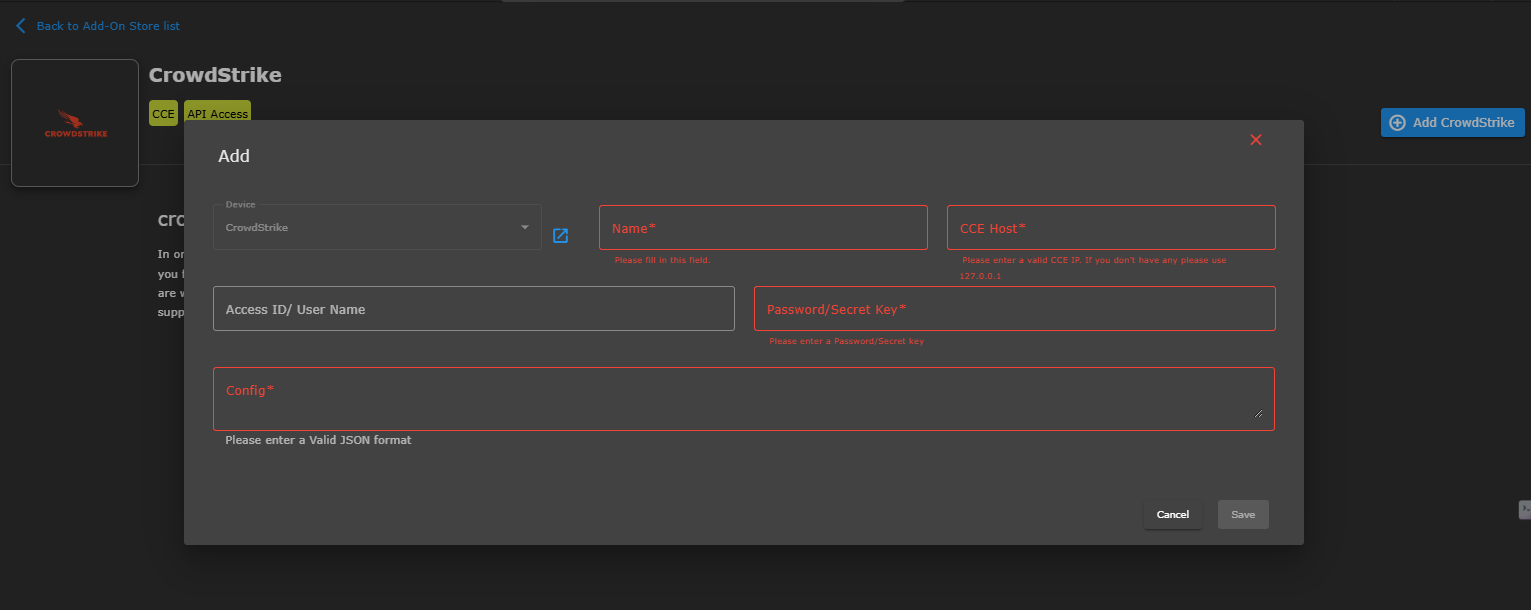

The CrowdStrike device configuration form will open

3: Basic Configuration Fields

Device Name: Enter a descriptive name for this CrowdStrike integration
CCE IP: Enter the appropriate CCE (Collection and Control Engine) IP address
Access ID/User Name: Enter the Client ID from CrowdStrike
Password/Secret Key: Enter the Client Secret from CrowdStrike
Configure Base URL
In the Config field, enter the Base URL in JSON format:
{"host": "your-crowdstrike-host"}

Example Configuration:

{"host": "api.us-2.crowdstrike.com"}

Available Host Values (choose based on your CrowdStrike region):

api.crowdstrike.com (US Commercial Cloud)
api.us-2.crowdstrike.com (US Government Cloud)
api.laggar.gcw.crowdstrike.com (US Government Cloud - GovCloud)
api.eu-1.crowdstrike.com (European Union Cloud)

(Optional) ->Configuration for Proxy Environments

If the customer environment uses an outbound proxy, include proxy details in the same Config field as mentioned below.

HTTP Proxy Example

{  "host": "api.us-2.crowdstrike.com",  "http_proxy": "http://ip:port"
}

HTTPS Proxy Example

{  "host": "api.us-2.crowdstrike.com",  "https_proxy": "https://ip:port"
}

Important Notes

Always include the protocol (http:// or https://) in the proxy URL
Configure only one proxy type at a time
Incorrect proxy formatting may cause authentication failures

Finally Save Configuration
Click the Save button to complete the integration setup.

VIP Note (Important)

Ensure that the following domain *.crowdstrike.com is allowed / whitelisted on the proxy or firewall for successful CrowdStrike API authentication and log ingestion:

Verification and Testing (MSSP Only)

On CCE (Command-Line Verification)

Login with the ADR user account.
Run:
```
otmdoc -m
```
Enter the add-on device container:
```
otmdoc -s cce-addon-devices
```
Check scheduled tasks:
```
crontab -l
```
Run the Seqrite Python script and review outputs.

On ADR GUI Console

Log in to ADR with appropriate administrative rights

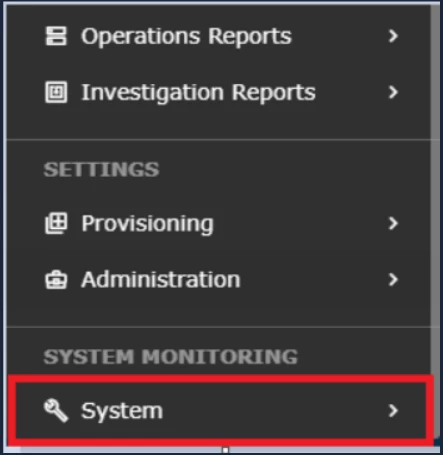

Navigate to SYSTEM

Check Collection Status

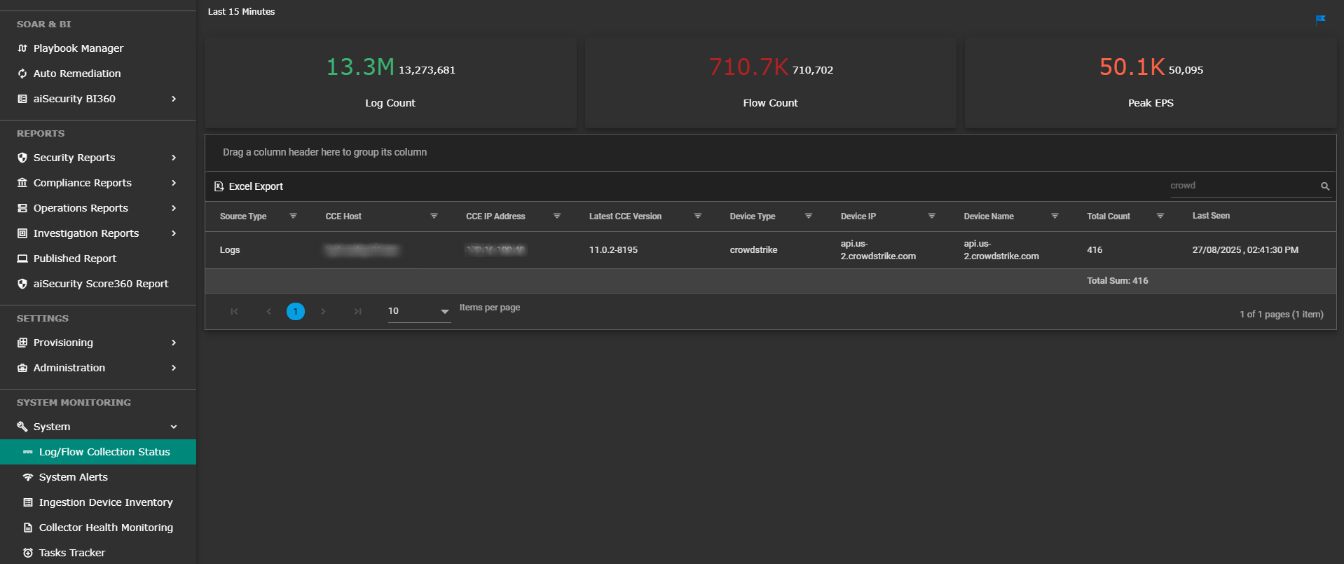

Go to Logs / Flow Collection Status
Verify the CrowdStrike integration status

Verify Source Device

In the SOURCE DEVICE IP section
Confirm that the CrowdStrike device IP is reflected and showing an active status
Check for successful log ingestion

Success Indicators

Integration Successful:

CrowdStrike device appears in the source device list
Log collection status shows "Active" or "Running"
CrowdStrike logs are appearing in ADR
No authentication errors in the system logs

Troubleshooting

Common Issues and Solutions

Authentication Failures:

Verify Client ID and Client Secret are entered correctly
Ensure the API client has all required scopes enabled
Check if the API client is active in the CrowdStrike console

Connection Issues:

Verify the correct Base URL format in the Config field
Ensure the proper CrowdStrike region endpoint is used
Check firewall whitelist configuration
Confirm network connectivity to CrowdStrike endpoints

No Data Collection:

Verify API scopes include necessary read permissions
Check CrowdStrike has active detections and alerts
Confirm integration status in ADR system logs and the flow collection status tab.

JSON Format Errors:

Ensure proper JSON syntax in the Config field: {"host": "api.us-2.crowdstrike.com "}
Remove any extra spaces or characters
Verify double quotes around keys and values

Best Practices

Security Recommendations

Store API credentials securely
Monitor integration logs for suspicious activity

Maintenance Tasks

Regularly verify integration status
Monitor log ingestion rates
Keep the API client active and updated
Review and update firewall rules as needed

Support Resources

Documentation Links

CrowdStrike API Documentation
ADR Integration Guide
CrowdStrike Cloud Region Information

Support Contacts

CrowdStrike Support: Contact through the CrowdStrike support portal
ADR Support: Contact your ADR support representative for integration issues

Document Version: 2.0
Last Updated: [10-02-2026]
Integration Type: Cloud-based API Integration
